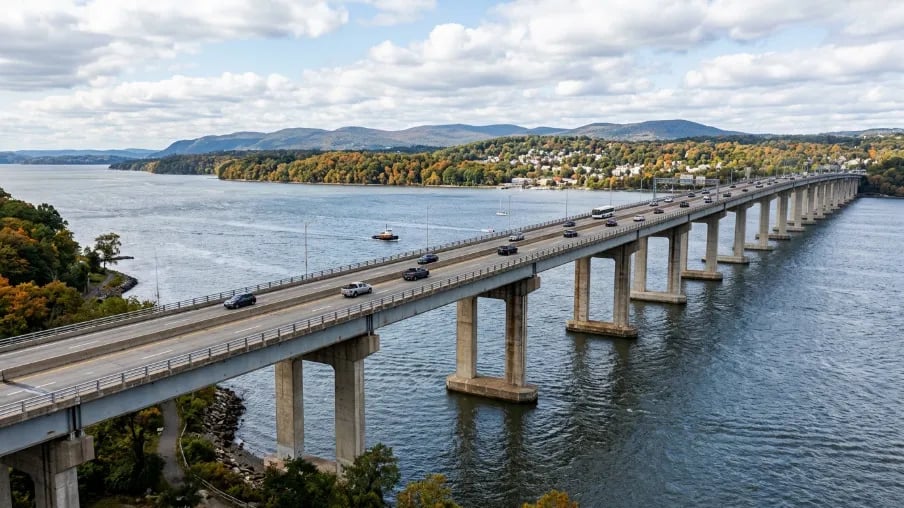

Beam Bridges refers to the simplest type of bridge, consisting of a horizontal beam supported by piers or columns at each end and, when needed, additional supports in the middle. It carries loads by transferring weight directly to these supports, making it a strong, cost-effective, and widely used solution for short-span road, railway, and pedestrian bridges.
I have walked across a lot of bridges in my career. Small footbridges. Big highway overpasses. And almost every time, the answer to "how was this built?" comes back to one simple structure: the beam bridges. Here at Nusaiba Construction & Technology, this is one of the questions clients ask us most often when planning a crossing.
If you are researching bridge types for a school project, a construction plan, or just out of curiosity, you are in the right place. In this guide, I will walk you through what a beam bridge is, how it works, and the real advantages and disadvantages you need to know before you pick this design for your next project.
By the end, you will know:
What a beam bridge is and how it works
The full structure and parts of a beam bridge
15 real advantages of beam bridges
15 real disadvantages of beam bridges
Real-world beam bridge examples
How much does a beam bridge cost
Whether beam bridges are strong enough for your needs
Let's get into it.
Key Takeaways
A beam bridge is the simplest bridge type, using horizontal beams supported by piers or abutments to carry loads safely across a gap.
Beam bridges are popular because they are cost-effective, fast to construct, easy to maintain, and suitable for short to medium spans.
The main advantage of beam bridges is their simple design and low construction cost, while the biggest limitation is their restricted span length.
Modern beam bridges are commonly built using reinforced concrete, steel, and prestressed concrete for strength and durability.
Beam bridges are widely used for highways, railways, pedestrian crossings, and small-to-medium river crossings worldwide.
What Is a Beam Bridge?
A beam bridge is a bridge made of one or more horizontal beams supported by abutments at each end and, for longer spans, by additional piers in the middle. It carries vehicles, people, and other loads by transferring weight directly from the beam to its supports. Because of its simple design, low cost, and fast construction, the beam bridge is the most common type of bridge used for short and medium spans worldwide.
The design is straightforward. There are no cables, arches, or suspension towers. A horizontal beam rests on two or more supports, allowing the structure to carry loads safely across a gap.
Beam bridges are also the oldest bridge design in history. A fallen tree placed across a small stream is technically a beam bridge. While early versions used wood, modern beam bridges are typically built from reinforced concrete, steel, or prestressed concrete for greater strength and durability.
The main purpose of a beam bridge is to cross rivers, roads, railways, or valleys using the simplest, fastest, and most cost-effective structural solution possible. That practical design is why beam bridges are the most widely used bridge type around the world.
How Does a Beam Bridge Work?
A beam bridge works by transferring the weight of vehicles, people, and other loads through a horizontal beam into supports called abutments and piers. As weight presses down on the bridge, the beam experiences compression at the top and tension at the bottom. Strong materials such as reinforced concrete and steel resist these forces, allowing the load to move safely into the ground.
When you put weight on a beam bridge, two things happen inside the beam at the same time:
Compression – The top of the beam gets squeezed together.
Tension – The bottom of the beam gets stretched apart.
The beam must resist both forces at once. That's why beam bridges are commonly built with reinforced concrete or steel, which perform well under both compression and tension. The abutments and piers then transfer the load directly into the ground.
This is also why beam bridges are best suited for shorter spans. As the beam gets longer, it bends more under its own weight and the load it carries. Engineers reduce this bending by adding extra piers, using deeper or stronger beams, or choosing another bridge type for very long crossings.
Why Are Beam Bridges Considered Simple and Cost-Effective?
Beam bridges are considered simple and cost-effective because their basic design uses horizontal beams supported by piers, reducing engineering complexity, material use, and construction time. From my experience studying bridge structures, I find that beam bridges are often chosen for short spans (typically up to 60 meters) because they require fewer components and lower maintenance costs compared with more complex bridge types.
According to the Federal Highway Administration (FHWA) Bridge Design Resources, simple bridge designs can improve construction efficiency and long-term durability when properly engineered. For many road and pedestrian projects, this practical approach helps reduce overall project expenses while maintaining reliable load-bearing performance.
Structure and Characteristics
Every beam bridge shares a few core parts. Knowing these helps you understand both the strengths and the weaknesses we will cover next.
Main Parts of a Beam Bridge
Beam (or girder): The horizontal load-bearing element. This is the star of the show.
Deck: The surface people or vehicles actually travel on, sitting on top of the beam.
Abutments: The end supports that transfer the load into solid ground.
Piers: Middle supports used on longer bridges.
Bearings: Small devices between the beam and the supports that allow slight movement from temperature changes.
Types of Beam Bridges
Beam bridges are not all the same. Here are the common variations you will see:
Simple span beam bridge: One beam resting on two end supports only. Best for short crossings.
Continuous span beam bridge: One beam running over three or more supports without breaks. Handles more weight and distributes stress better.
Cantilever beam bridge: Beams that extend out past their supports, sometimes meeting a matching span from the other side.
Girder bridge: A common beam bridge that uses I-beams or box girders as the main structural element. Most highway overpasses are girder bridges.
Box girder bridge: Uses a hollow, box-shaped beam for extra strength with less material.
Truss beam bridge: Adds a triangular framework above or below the beam for added strength over longer spans.
What Are Beam Bridge Used For?
Beam bridges are used for creating simple, strong, and cost-effective crossings over short to medium distances. They are commonly used for roads, highways, railways, pedestrian walkways, and small water crossings. Their main purpose is to support vehicles, people, and other loads by transferring weight from the horizontal beam to supporting piers or columns.
Beam bridges show up almost everywhere because they are cheap, fast, and reliable for short and medium spans. Common uses include:
Highway overpasses and on-ramps
Small to medium river and stream crossings
Railway bridges
Pedestrian and park footbridges
Rural road crossings
Approach spans that connect to larger cable-stayed or suspension bridges
If you drive on a highway today, there is a strong chance you already crossed a beam bridge without even noticing it. That is honestly the biggest compliment you can give this design. It just works quietly in the background.
Real Examples
When I explain beam bridges with real examples, I usually point to projects that show how this simple design works at different scales. The Lake Pontchartrain Causeway is one of the best-known examples. Completed in 1956 and extended in 1969, this continuous concrete beam bridge runs about 38.4 kilometers (23.9 miles) across Lake Pontchartrain, making it one of the world’s longest bridges over water. According to the Guinness World Records – Longest Bridge Over Water, it has held a major record for decades.
Another modern example is the New Buck O'Neil Bridge, which opened in December 2024. This project shows that beam bridge technology is still used for large urban transportation needs, not only older structures.
In my experience, the most common beam bridges are the reinforced concrete girder bridges used for local roads, railway crossings, and highway flyovers. In countries like Bangladesh, these structures remain popular because they are cost-effective, durable, and suitable for short-to-medium spans. The American Association of State Highway and Transportation Officials (AASHTO) also highlights concrete and steel girder systems as widely used solutions in modern bridge construction.
Facts You Should Know
Here are a few quick, useful facts:
The beam bridge is considered the oldest bridge design in human history.
The Lake Pontchartrain Causeway is recognized as one of the longest beam bridges over water in the world.
Beam bridges typically work best for spans under 250 feet (about 76 meters) per section, though continuous designs can extend much further with added piers.
Reinforced concrete and steel are the two most common modern materials.
Beam bridges are usually the fastest bridge type to design and build.
Beam Bridge Advantages and Disadvantages: 30 Points Explained
Now let's get to what you really came here for. Below is a full breakdown of beam bridge pros and cons, grouped into 15 advantages and 15 disadvantages so you can compare beam bridge strengths and weaknesses side by side.
15 Advantages
These are the core benefits of beam bridges that make them the most common bridge type on the planet.
1. Simple design: There is no complex geometry, no cables, no towers. This means fewer things can go wrong during design.
2. Fast to build: Because the design is simple, beam bridges usually go up faster than arch, suspension, or cable-stayed bridges.
3. Lower construction cost: Less material, less specialized labor, and simpler engineering all add up to real savings.
4. Easier to design: Engineers can calculate the loads on a beam bridge using well-established, straightforward methods.
5. Uses common materials: Steel and reinforced concrete are widely available almost anywhere in the world, including Bangladesh.
6. Lower maintenance needs: Fewer moving parts and fewer complex components mean less ongoing upkeep compared to suspension or cable-stayed designs.
7. Works well for short and medium spans: For most everyday crossings, this is the most practical choice available.
8. Prefabrication friendly: Beams can often be built off-site and then lifted into place, cutting down construction time on location.
9. Good for repetitive use: Highway systems can reuse the same beam bridge design across many overpasses, saving design time and cost.
10. Easy to inspect: The straightforward structure makes routine safety inspections simpler and faster.
11. Flexible for different loads: Beam bridges can be adjusted for pedestrian, vehicle, or rail traffic with design changes rather than a whole new bridge type.
12. Works on varied terrain: As long as there are solid points for abutments and piers, beam bridges adapt to many site conditions.
13. Lower skilled-labor requirement: Construction crews do not need the highly specialized skills required for suspension cable work.
14. Predictable performance: Decades of use worldwide mean engineers know exactly how these bridges behave under load.
15. Good foundation for larger structures: Beam bridges are often used as approach spans that connect to bigger, more complex bridges.
15 Disadvantages
No design is perfect. Here are the real beam bridge weaknesses you should weigh before committing to this bridge type.
1. Limited span length: Beam bridges struggle once spans get very long, since the beam bends too much under its own weight and traffic load.
2. Needs more piers for long crossings: Long beam bridges need many piers, which adds cost and can interrupt water flow or shipping lanes.
3. Less impressive visually: Compared to suspension or cable-stayed bridges, beam bridges are often seen as plain or purely functional.
4. Heavier per span: Concrete beam bridges can be heavy, which increases the load the foundations must support.
5. Not ideal for wide, deep waterways: Rivers or bays that need very long unsupported spans are usually better served by other bridge types.
6. Can restrict boat traffic: Numerous piers in a river can be an obstacle for large ships or heavy river traffic.
7. More vulnerable to flood damage: Multiple piers standing in a waterway face constant erosion and flood-related risk.
8. Deflection under heavy loads: Beams can bend slightly under very heavy traffic, which requires careful load monitoring over time.
9. Requires strong foundation soil: Weak or unstable soil beneath piers can compromise the whole structure.
10. Thermal expansion issues: Beams expand and contract with temperature changes, requiring expansion joints that need regular maintenance.
11. Fatigue over time: Constant traffic loading can cause metal fatigue in steel beam bridges over many decades.
12. Corrosion risk: Steel beam bridges near coastal or humid areas, which is relevant in Bangladesh, face a higher risk of corrosion without proper coatings.
13. Limited aesthetic flexibility: Architects have fewer creative options with beam bridges compared to arch or suspension designs.
14. Not ideal for seismic zones without reinforcement: Extra engineering is needed to make beam bridges perform well during earthquakes.
15. Higher long-term cost for very long crossings: While cheap for short spans, adding pier after pier for a long crossing can eventually cost more than a single long-span alternative like a cable-stayed bridge.
Are Beam Bridges Strong?
Yes, beam bridges are strong, but strength depends on span length and design. For short to medium crossings, a well-built beam bridge handles heavy vehicle and rail traffic every single day, for decades, without issue.
The key is matching the design to the job. A short beam bridge over a small canal is more than strong enough. A very long crossing over a wide river needs continuous spans, deep piers, and careful engineering, or a completely different bridge type altogether.
This is exactly why hiring an experienced construction management team matters. The strength of a beam bridge comes down to correct engineering, not just the concept itself.
Cost: What to Expect
The cost of a beam bridge in Bangladesh depends on factors such as the bridge size, span length, foundation requirements, construction materials, and site conditions. As a general estimate:
Concrete I-beam bridges: Approximately ৳12,000 to ৳71,000 per square foot.
Steel beam bridges: Around ৳49,000 to ৳198,000 per linear foot for pedestrian-scale bridges.
Small single-span rural beam bridges: Typically cost between ৳2.5 crore and ৳18.5 crore.
Medium multi-span road beam bridges: Usually range from ৳12 crore to ৳124 crore.
These are estimated construction costs for Bangladesh based on current exchange rates and typical project pricing. Actual costs vary depending on the bridge location, soil conditions, design specifications, material prices, labor costs, and project complexity. A detailed engineering survey and quantity estimation are essential for an accurate project budget.
Beam Bridge vs Other Bridge Types
A quick comparison helps put beam bridge advantages and disadvantages into perspective:
Bridge Type | Best For | Cost | Span Length |
|---|---|---|---|
Beam bridge | Short to medium crossings | Low | Short to medium |
Truss bridge | Medium spans, added strength | Medium | Medium |
Arch bridge | Scenic, stable crossings | Medium-high | Medium to long |
Cable-stayed bridge | Long crossings, urban rivers | High | Long |
Suspension bridge | Very long crossings | Very high | Very long |
If your project needs a short, reliable, and budget-friendly crossing, a bridge is usually the right call. If you need to cross a very wide river in one uninterrupted span, you likely need a different design.
Final Thoughts
The beam bridge is not flashy. It will not end up on a postcard next to a suspension bridge at sunset. But it is the workhorse of the bridge world. It is affordable, fast to build, easy to maintain, and strong enough for the vast majority of everyday crossings.
Knowing the real bridge advantages and disadvantages helps you make a smarter decision, whether you are planning a small footbridge or a major highway project.
If you are planning a bridge or any infrastructure project and want it done right, from the first site survey to the final inspection, the construction management team at Nusaiba Construction & Technology can help you plan, budget, and build with confidence. Get in touch with our construction management experts today to talk through your project.
Frequently Asked Questions About Beam Bridges
What is a beam bridge in simple words?
A beam bridge is a bridge made of a straight beam that rests on supports at each end. It is the simplest and oldest bridge design.
What are beam bridges used for?
Beam bridges are mainly used for highway overpasses, small to medium river crossings, railway bridges, and pedestrian footbridges.
Are beam bridges strong?
Yes. Strong and reliable for short and medium spans. Very long spans need extra piers or a different bridge type.
What is the biggest disadvantage of a beam bridge?
The biggest disadvantage is limited span length. Beam bridge bend too much over very long, unsupported distances without added piers.
