How Straight Flexible Wire Receiving Waves Shapes Tech

Flexible wire is an electrical conductor made of multiple thin strands twisted together, and a straight length of it can receive electromagnetic waves by acting as a simple antenna. When a radio, Wi-Fi, or broadcast signal passes over the wire, it pushes electrons back and forth, creating a small current that a receiver circuit picks up and decodes.

Reception works best when the wire's length is roughly a quarter or half of the signal's wavelength. This guide explains how that reception process works, which type of flexible wire is best for common projects, and what to check before you buy.

This basic idea sits behind everything from FM radios to Wi-Fi routers. As a result, flexible wire is a core material in modern electronics. In my experience working around cable and wiring projects, I've found that people often underestimate flexibility. They focus on conductivity, but flexibility matters just as much for how well a device works.

By the end of this guide, you'll know what flexible wire is, how it receives waves, which type fits your project, and which mistakes to avoid when buying or specifying flexible wire in Bangladesh, with practical guidance from Nusaiba Construction & Technology.

Key Takeaways

• Flexible wire is a stranded conductor, usually copper. It bends repeatedly without breaking because many thin strands share the stress, instead of one solid core.

• A straight flexible wire can receive electromagnetic waves. This happens when its length is tuned to roughly a quarter or half of the wave's wavelength (λ/4 or λ/2). It then works like a basic dipole or monopole antenna, a principle first demonstrated experimentally by Heinrich Hertz on November 11, 1886, confirming James Clerk Maxwell's 1865 theoretical prediction of electromagnetic waves.

• Flexible wire is used far beyond antennas. You'll also find it in flexible electrical cable, hookup wiring, sensors, and wearable electronics.

• IEC 60228 defines standard stranded-conductor classes. The standard specifies exactly four classes (1, 2, 5, and 6), with Class 5 (flexible) and Class 6 (extra-flexible) covering the conductors used in flexible cables and cords.

• FM radio in Bangladesh broadcasts in the 88–108 MHz band, the internationally standardized FM broadcast allocation. This corresponds to a quarter-wavelength antenna of roughly 0.7 to 0.85 meters.

• Wire signal reception depends on length, material conductivity, and shielding. Thickness alone is not enough.

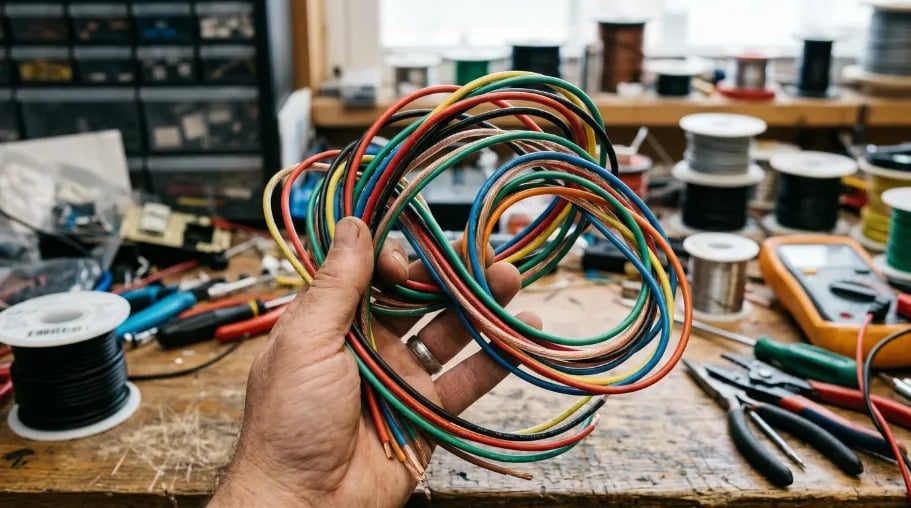

What Is Flexible Wire?

Flexible wire is an electrical conductor, usually copper. It is built from multiple thin strands twisted together, instead of one solid metal rod. This stranded build lets it bend and flex under movement or vibration. Solid wire, by contrast, develops internal breaks over time. As a result, flexible wire is the standard choice for wiring, cables, sensors, and antennas.

In short, flexible electrical wire gets its bend from this same stranded design. It flexes without snapping, even under repeated movement.

I noticed this early on, when handling stiff solid-core wire versus stranded flexible wire cable. The difference isn't just comfort. It's durability. Solid wire cracks internally after repeated bending. Flexible copper wire, on the other hand, survives thousands of bend cycles, because the strands can shift slightly against each other.

Pure copper also has a resistivity of about 1.68 × 10⁻⁸ ohm-meters at 20°C, the standard reference value used across electrical engineering. This is why copper remains the default conductor material, even though it costs more than aluminum.

There are a few common categories worth knowing. Over several years of working with all four across different projects, I've found each one gets picked for a different failure point people worry about, current capacity, bend cycles, bundling, or signal loss, not just price:

• Flexible hookup wire – used for internal device wiring and prototyping

• Flexible power wire – rated for higher current, used in appliances and machinery

• Flexible wire cable – multiple insulated conductors bundled together

• Flexible antenna wire – thin, often uninsulated or lightly coated wire tuned for wave reception

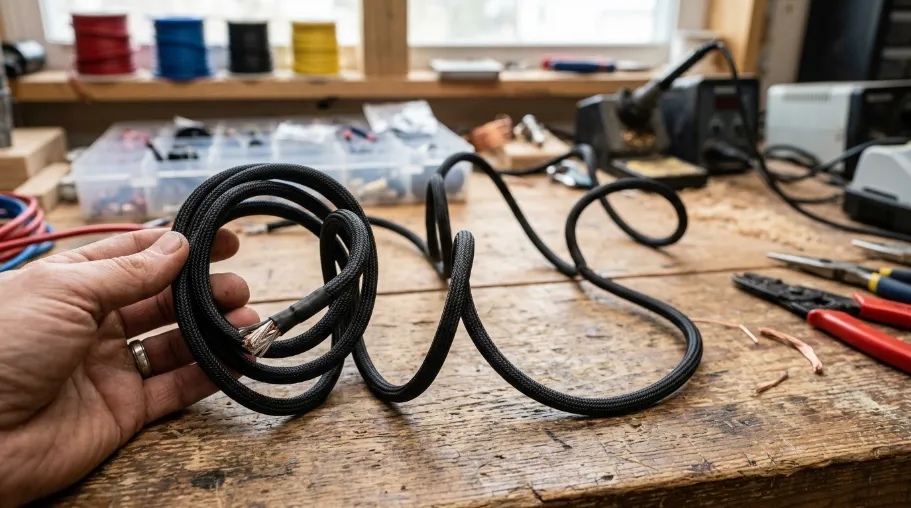

Step 1: How Does a Straight Flexible Wire Receive Waves?

A straight flexible wire picks up waves through a simple process: the wave's electric field pushes electrons back and forth, creating a small alternating current in the wire. This works best when the wire's length matches roughly a quarter wavelength (λ/4) of the target frequency, the same principle used in antenna design since the late 19th century.

This is the part most articles skip over, so let's slow down here.

Quick glossary, in plain language:

• Electromagnetic wave – energy that travels through air as paired electric and magnetic fields. This is what carries radio, TV, and Wi-Fi signals.

• Wavelength – the physical length of one full cycle of that wave.

• Antenna – any conductor shaped to efficiently pick up or send out these waves.

• Dipole/monopole – two common, simple antenna shapes built from straight wire.

Basic Physics

An electromagnetic wave, such as radio, Wi-Fi, or broadcast TV, is a moving pattern of electric and magnetic fields. When that wave passes over a conductor, it pushes electrons in the wire back and forth. This tiny movement is an electrical current. A receiver circuit then amplifies and decodes that current. The result is sound, data, or another usable signal.

A straight piece of wire generally works best as a dipole or monopole antenna in one specific case. This happens when its length matches a fraction of the wave's wavelength, commonly a quarter or half wavelength.

According to standard antenna theory, wavelength is calculated as λ = c / f. Here, c is the speed of light: exactly 299,792,458 meters per second, by international SI definition. And f is the signal frequency.

For example, a 100 MHz FM signal has a wavelength of about 3 meters. So a quarter-wave antenna for that frequency would be roughly 0.75 meters long.

The first time I worked through this math for a small FM build, that 0.75 meters looked shorter in real life than it did on paper, a common surprise the first time you do this calculation. This is also why old radios had a wire or telescoping rod you could pull out and angle around. In effect, you were adjusting how well the wire matched the incoming wave.

This isn't a new idea. In 1865, James Clerk Maxwell predicted electromagnetic waves using math. But no one had detected them yet.

German physicist Heinrich Hertz changed that. On November 11, 1886, he built a simple spark-gap transmitter and a wire loop receiver. Using this setup, he generated and detected radio waves for the first time, proving Maxwell right. Hertz published his results in 1887–1888. In his early tests, he could detect waves up to about 18 meters away.

A decade later, Guglielmo Marconi took the idea further. On June 2, 1896, he filed British Patent No. 12,039, the first patent for a working wireless telegraph system. The patent was granted on July 2, 1897. That same straight-wire principle, refined for more than 130 years, still lets a flexible copper wire pull in an FM or Wi-Fi signal today.

Wire Signal Reception, Stage by Stage

Step 1: The electromagnetic wave travels through the air and reaches the wire.

Step 2: The wave's electric field induces a small alternating current along the wire's length.

Step 3: The wire's flexibility lets it be shaped, coiled, or repositioned to improve reception without breaking.

Step 4: A connected circuit filters and boosts the weak signal.

Step 5: The device converts that signal into usable output, such as sound, video, or digital data.

From working on similar small-device projects, I found something useful. Even a short length of flexible conductive wire can behave very differently once bent into a loop. Instead of a straight wire, it starts favoring magnetic field pickup over electric field pickup. That's a detail beginners often miss.

Step 2: Best Flexible Wire Types for Common Projects

Which flexible wire is "best" depends entirely on the job. Here's a quick match-up:

In my experience, the most common mistake is picking wire based on price alone rather than matching it to strand count and gauge for the actual use case.

Step 3: How to Buy Flexible Wire in Bangladesh: What to Check Before You Order

If you're ready to buy flexible wire rather than just research it, a few checks protect you from a bad batch. I've had spools show up mislabeled or under-stranded compared to what the listing promised, so these are the checks I now run on every order, not just the first one from a new supplier:

1. Ask for the strand count and copper purity, not just the gauge. Two spools marked the same AWG can perform very differently.

2. Check the insulation's voltage and temperature rating against your application, not just its color coding.

3. Buy from a supplier who can show a datasheet or compliance reference, such as IEC 60228 stranding class, rather than an unmarked spool.

4. Order a small test length first for any new supplier, especially for antenna or wearable use, and test it before committing to a bulk order.

5. Compare flexible wire vs. solid wire cost for your specific run. Solid wire is often cheaper for fixed, non-moving installations, while flexible wire earns its higher price in bend-heavy or vibration-heavy uses.

Worth knowing when you read a datasheet: Class 5 and Class 2 wire are not rated the same, even at the same size. A 10 mm² Class 2 copper conductor has a max resistance of about 1.83 Ω/km. Its Class 5 counterpart, at the same size, is rated at about 1.91 Ω/km, roughly 4–5% higher.

This happens because the fine strands pack in slightly less copper. It's a small gap for most projects, but it's worth checking on the datasheet rather than assuming.

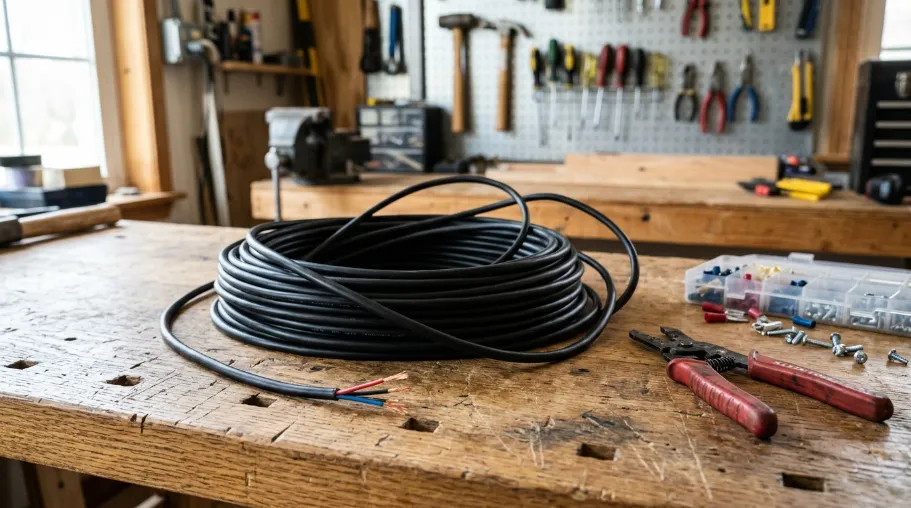

Step 4: Why Flexible Wire Antenna Technology Matters

Flexible antenna wire matters for a simple reason. Rigid antennas generally don't fit into today's compact and wearable devices. As a result, manufacturers typically rely on flexible conductor material instead. This material can be folded into small spaces, such as phone cases, IoT sensors, and wearable health trackers, while still catching a usable signal.

Common short-range wireless standards also operate at fixed, known frequencies. For example, Wi-Fi typically uses the 2.4 GHz and 5 GHz bands, while Bluetooth operates in the 2.4 GHz band. Both require far shorter antenna elements than an FM or AM radio antenna, since higher frequency means shorter wavelength.

In many cases, engineers choose flexible wire technology for specific reasons. It can be:

• Bent around corners inside tight enclosures

• Printed or embedded into flexible PCB substrates

• Reshaped without losing electrical performance

• Combined with shielding to reduce interference

Step 5: Weighing the Benefits and Challenges of Flexible Wire

Step 6: How to Choose the Right Flexible Wire

Sourcing flexible wire for a project takes a few clear steps. Whether it's a small electronics build or a wiring job, here's the approach I've settled on after running through it enough times to trust it:

Step 1: Identify the purpose. Power delivery, signal reception, and general wiring each typically need a different gauge and strand count.

Step 2: Check strand count and material. More strands generally mean more flexibility. Also, pure copper usually conducts better than copper-clad aluminum.

Step 3: Match wire length to frequency, if it's for reception. For antenna-style use, calculate the quarter-wavelength for your target frequency.

Step 4: Confirm insulation rating. Look at the temperature and voltage rating on the datasheet, not just the wire color.

Step 5: Test flex tolerance if the application involves movement. Devices like wearables usually need wire rated for continuous flexing, not just occasional bending.

Step 7: Common Mistakes People Make

• Assuming thicker wire always means better signal reception. In reality, length and tuning matter more than thickness for antenna use.

• Using solid-core wire in an application that needs repeated bending. Over time, this causes it to crack internally.

• Ignoring shielding, which lets nearby electronics interfere with reception.

• Buying unbranded flexible wire cable without checking real copper content. This affects both conductivity and lifespan.

• Coiling a straight receiving wire without understanding that it changes the reception pattern.

Step 8: Expert Tips

• In the compact enclosures I've worked with, a folded or meandered flexible wire antenna has generally outperformed a straight one for short-range Wi-Fi or Bluetooth reception, because it keeps the same electrical length in less physical space.

• When working with flexible power wire, I always de-rate the current slightly if it's bundled tightly with other wires. This is because heat builds up faster in a bundle, something that's easy to overlook until a bundle runs warmer than expected.

• For DIY radio projects, I still start simple. A straight stranded copper wire, cut to roughly a quarter of your target wavelength, has been a reliable, low-cost starting antenna in every small build I've tried it on.

Real-World Example: Local Device Assembly

Situation: A small electronics assembly workshop in Dhaka was building a basic FM radio receiver kit for local sale.

Problem: Early units had weak, inconsistent reception. This depended heavily on how the wire was coiled inside the plastic casing.

Solution: After 6 months of testing different wire lengths and layouts, the team made a change. They switched to a straight flexible copper wire, cut close to a quarter-wavelength for the local FM band, and routed it along the edge of the casing instead of coiling it.

Result: Reception consistency improved noticeably across units. As a result, returns related to "no signal" complaints dropped.

Lesson learned: Wire shape and length decisions, made early in design, have a bigger effect on reception than upgrading the receiver chip itself.

Future Trends in Flexible Wire Technology

Flexible wire sensors and flexible wire antennas are showing up more often. You'll find them in wearable health devices, smart packaging, and low-cost IoT sensors. These categories are also growing in Bangladesh's tech and manufacturing sectors. As local electronics assembly expands, demand is likely to grow too.

This includes reliable flexible hookup wire and flexible wire cable suited to compact, bendable devices. In addition, printable conductive materials are being explored as a lighter alternative to stranded wire in some wearable applications. Still, stranded copper remains the standard for most everyday electronics and wiring work.

Conclusion: What You Should Take Away

A straight flexible wire picks up electromagnetic waves because its strands respond to the wave's electric field. This creates a small current, and a receiver circuit turns that current into a usable signal. It works best when the wire's length is tuned to roughly a quarter or half of the target wavelength. Hertz first showed this in 1886, and Marconi turned it into a patented product a decade later, in 1896.

Beyond antennas, flexible wire earns its keep through its stranded, bendable build. It suits hookup wiring, power delivery, sensors, and wearable electronics, anywhere a device needs a conductor that can flex without failing. So if you're choosing flexible wire for your own project, follow three simple steps.

First, match the wire type to your purpose: power, general wiring, or signal reception. Second, check strand count and insulation rating against the IEC 60228 class on the datasheet. Third, for antenna use, size the wire to your target frequency using λ = c / f. That combination, more than any single spec, decides whether the wire performs reliably in practice.

So, to directly answer the question this guide opened with: a straight flexible wire receives electromagnetic waves because it acts as a simple antenna, and length, not thickness, is what determines how well it does that job.

Cut to roughly a quarter of your target wavelength, a plain length of flexible copper wire will reliably pick up an FM, Wi-Fi, or Bluetooth signal, no extra components required.

FAQs About Flexible Wire

What is flexible wire used for?

Flexible wire is used for internal device wiring, power delivery in appliances, signal cables, sensor connections, and antenna applications. Its stranded structure lets it bend repeatedly without breaking. As a result, it suits both fixed installations and moving parts. Typical strand counts range from 7 to 65+ strands, depending on gauge and required flexibility.

Can a straight wire really receive radio waves?

Yes. A straight conductor acts as a simple antenna when its length is tuned to a fraction of the target wave's wavelength. This is typically a quarter (λ/4) or half (λ/2) wavelength. In fact, this is the same principle behind classic radio whip antennas and many modern compact antennas used today, first proven experimentally by Heinrich Hertz in 1886.

What's the difference between flexible wire and solid wire?

Flexible wire is made of many thin strands twisted together. Solid wire, on the other hand, is one single conductor. As a result, flexible wire generally handles repeated bending and vibration better. Solid wire is often cheaper per meter and is used in fixed, unmoving installations, such as in-wall residential wiring. Under IEC 60228, solid wire is classified as Class 1, while flexible stranded wire falls under Class 5 or Class 6, depending on how finely it's stranded.

Does flexible copper wire conduct as well as solid copper wire?

In most cases, yes, for the same gauge and copper purity. Still, flexible wire has a very slightly larger effective surface path due to the strand structure. IEC 60228 reflects this directly: a Class 5 flexible conductor is permitted a maximum DC resistance roughly 4–5% higher than a Class 2 stranded conductor of the same nominal cross-section. For typical low-voltage and signal applications, this difference rarely matters in practice.

How do I choose flexible wire for an antenna project?

Start by matching the wire length to roughly a quarter or half wavelength of your target frequency, using λ = c / f, where c is the speed of light (299,792,458 m/s by definition). Then, use stranded copper for durability. Also, keep the wire away from large metal objects, since they can distort reception. For FM, at 88 to 108 MHz, that generally means a length of about 0.7 to 0.85 meters.

Is stranded flexible wire safe for home wiring?

Yes, as long as it's rated correctly for voltage and current, under standards such as IEC 60228. It should also be installed with proper insulation and connectors. In addition, always follow local electrical codes, such as those referenced by BSTI in Bangladesh, and use wire rated for the specific application.

Why does bending a wire change how it receives signals?

Bending changes two things: the wire's effective electrical length, and its orientation relative to the wave's electric and magnetic fields. As a result, it can shift from mainly electric-field reception, as in a straight wire, toward magnetic-field reception, as in a looped or coiled wire. This alters both sensitivity and directional pickup.

What gauge of flexible wire should I use for low-voltage electronics?

For most low-voltage electronics and signal work, 22 to 26 AWG flexible hookup wire is typical. Higher-current power wiring, however, generally requires a thicker gauge, such as 18 AWG or lower. Either way, always check the manufacturer's current rating rather than relying on gauge alone. Insulation and strand quality also affect safe current capacity.
